Universal Crank Trigger Kit
Fast Dispatch
Ships in 1–5 business days from our warehouse. Australia-wide delivery available.
Buy with Confidence
Secure checkout and support available if you need help before or after purchase.
Universal kit for 7" Diameter Harmonic Balancers
- Absolutely the most accurate way to trigger the ignition.
- The non-magnetic pickup cannot be false triggered.
- Powerful magnets are embedded in a billet aluminium trigger wheel.

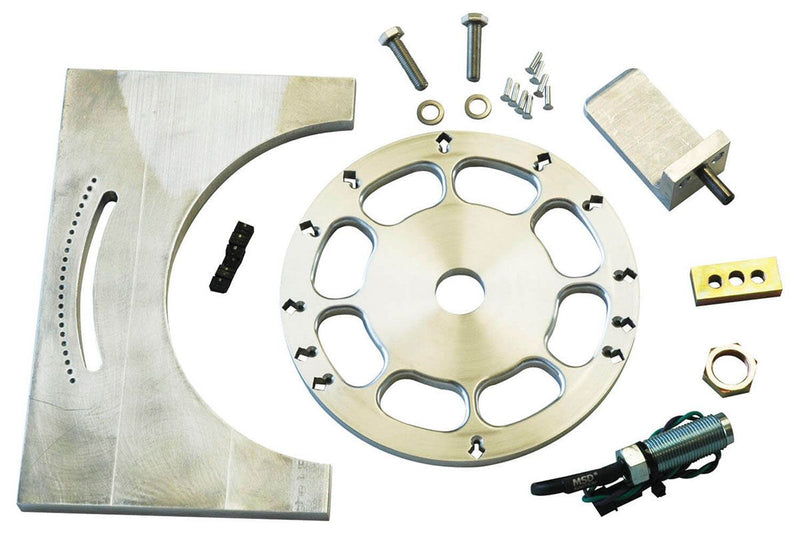

Racers have always been inventive and willing to fabricate the parts they need if nothing is available. Building a crank trigger system is not an easy task but there has been an increasing number of unique front hub systems and distributorless ignitions that require one. MSD's Universal Flying Magnet Crank Trigger Kit will give you a head start in fabricating a custom kit for your application. This kit is supplied with everything you'll need to get you going in the right direction. A 7" billet aluminium wheel is supplied that has magnet positions for 4, 6, 8, 10 or even 12-cylinder engines. An oversized bracket arm is supplied that can be cut down to your specs and an 'L" shaped holder is also supplied that can be machined /4" or 3/8" pick-up.
