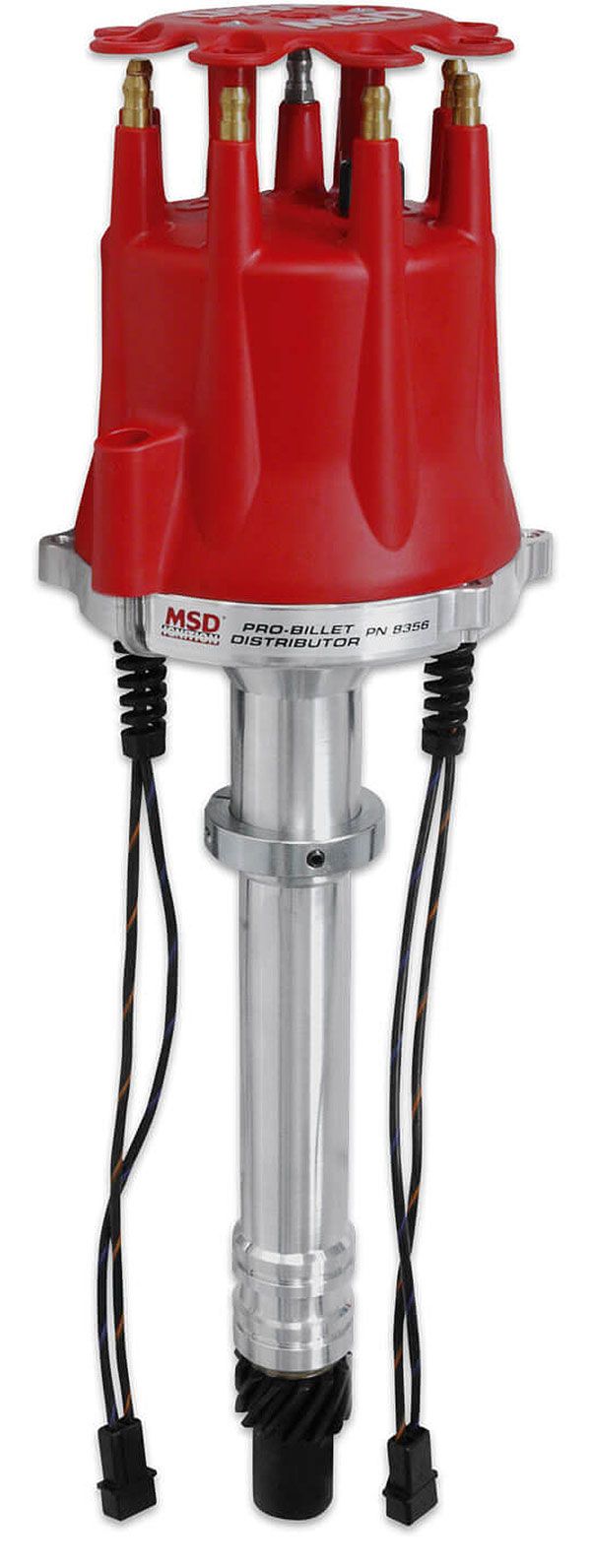

Pro-Billet Distributor
by MSD
Original price
$962.72
-
Original price
$962.72
Original price
$962.72
$962.72
-
$962.72
Current price
$962.72
Fast Dispatch
Ships in 1–5 business days from our warehouse. Australia-wide delivery available.
Buy with Confidence
Secure checkout and support available if you need help before or after purchase.
Chev V8 Small/Big Block, Dual Magnetic Pickup, Ideal for Circle Track Racing
Part Number: MSD8356
- Dual magnetic pick-ups are placed 180° apart to provide a complete redundant ignition system for racing applications
- Easy-to-adjust mechanical advance with supplied springs and stop bushings
- Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
- Advance weight pins are staked and tig welded to the plate
- Nylon pads ensure smooth operation of the advance weights
- CNC machined billet aluminium housing and billet aluminium base
- 0.500" steel shaft is QPQ coated and guided by a sealed ball bearing and an extra long sintered bushing
- Special oil tract improves lubrication to the distributor and cam gear
- O-ring seals can be installed for oil pressure control (modified blocks only)
- Adjustable slip collar mounting flange for engines with modified deck heights
- Will m advance canister
- Mechanical advance assembly can be locked out for crank trigger systems
- Supplied with an HEI style distributor cap and rotor and accepts a Cap-A-Dapt
- Must be used with an MSD 6, 7, 8, or 10 Series Ignition
These distributors are designed specifically for circle track racing. Not only do they all feature a strong, billet aluminium housing and large steel shafts, they also offer two magnetic pick-ups! With two mag pick-ups, racers can have a complete redundant ignition system which can be activated at the flip of a switch. The pick-ups are placed precisely 180° apart so when you switch to the secondary ignition, the timing remains constant!
