Plazmaman EVO 4-6 PRO SERIES INTERCOOLER KIT

Plazmaman's Tube & Fin intercooler kit is designed to suit the Mitsubishi Lancer, Evo 4-6 (CN9A / CP9A) models.

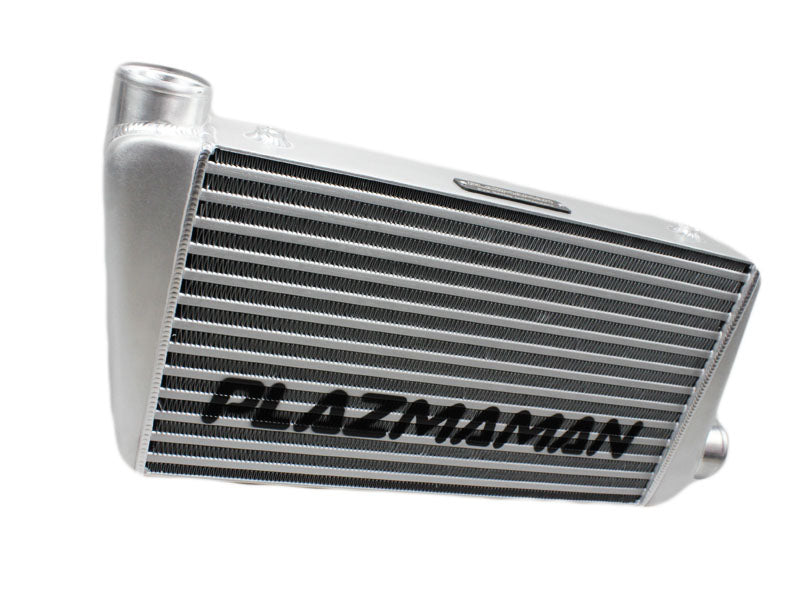

The intercooler is manufactured using a high quality lightweight 500mm x 300mm x 76mm Tube & Fin intercooler core, capable of flowing up to 900hp. This intercooler core is a high quality core, and weighs in at just over 6kg, making it one of the lightest and best recovering intercoolers on the market. A smoother and larger internal diameter cast aluminium turbocharger outlet pipe is also included in this kit, which results in an instant power increase over the OEM piping.

Not wanting to stray too far from Mitsuibishi's basic intercooler concept, we concentrated on creating an intercooler suited to more consistent power. By using the basic OEM style of core, we chose larger air flow tubes, retaining a similar internal and external fin arrangement for maximum heat dispersion. A special angle and thickness of fin arrangement is also used to maximize the flow capacity and increase surface area of the core. As this is an OEM replacement intercooler, it suits the factory intercooler piping, or a Plazmaman aftermarket piping kit.

The Intercooler & piping is available in raw, polished or stealth black finish. Silicone hoses are black.

OEM Blow off Valve used
