Navara D40/Pathfinder 2011+ Hot Side - Circlip Delete Piping kit

This hot side piping kit is to suit the late model Nissan Navara/Pathfinder 2.5L D40 (2011 onwards with the SPRING CLIP ENDS - Not hose clamps!)

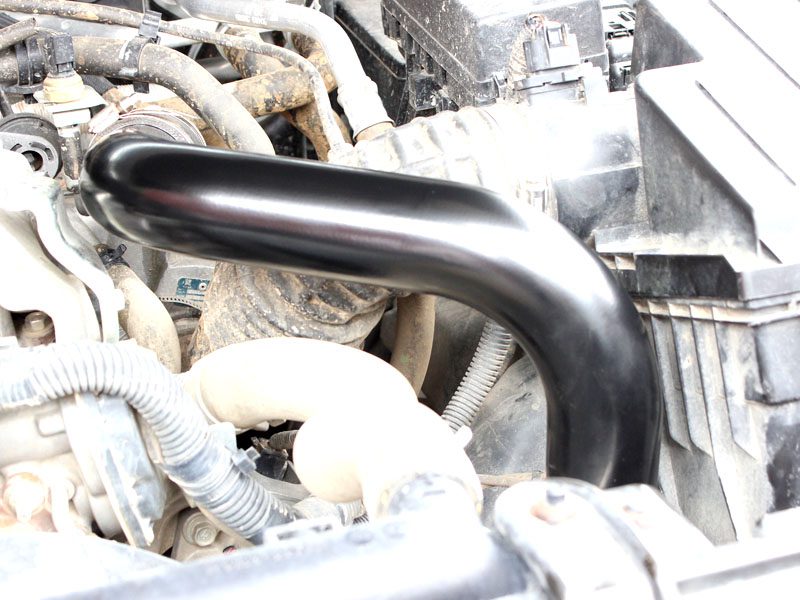

This piping kit replaces the factory rubber hose that runs from the intercooler, to the cast aluminium turbocharger compressor housing elbow and COMPLETELY removes the spring clips.

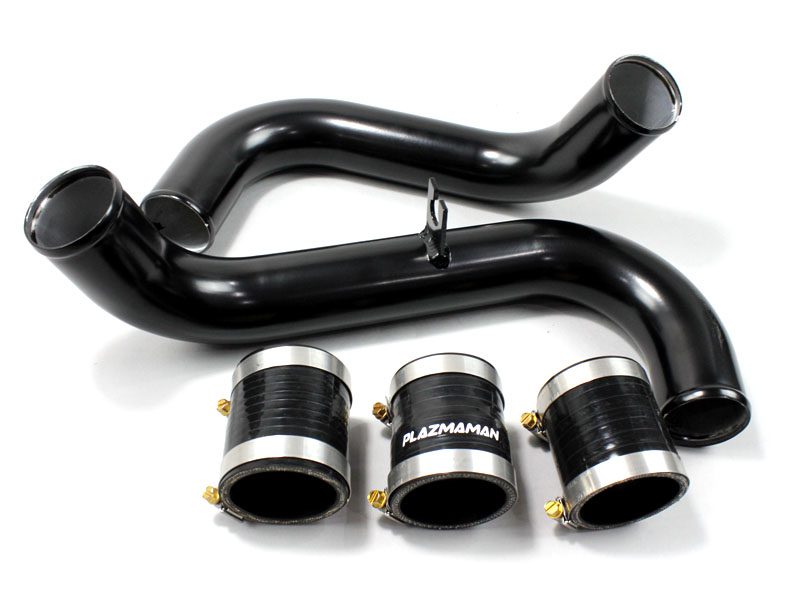

Constructed from CNC aluminium mandrel bent piping, this kit prevents any flex or compression under high RPM and boost levels. Another advantage of running an internally smooth hard pipe is that it encourages earlier turbo spool up, better turbo note, and better throttle response throughout the rev range.

Please compare that you have the correct type by looking through the pictures in this listing. We have a listing for the 2011+ Hose clamp style as well.

These kits are available for standard height vehicles, or for vehicles with 2.0" body lift (please specify when ordering)

NOTE - A body lift is NOT the same as a suspension lift. If you are unsure, please contact us before purchasing.

NOTE - This Hot Piping Kit is to suit late model (2011 onwards) Navara's, which have a short aluminium cast elbow from the turbocharger outlet. The factory rubber hose is held in place with a "spring clip". Some 2011 models came out with the extended cast aluminium outlet elbow, and 2 standard style hose clamps holding the factory rubber in place. You may need the 2007-2011 version if this is the case (see related items).

Early model Navara's (2004 - 2006) have a black metal elbow coming out of the turbocharger compressor housing, and the mid models (2007-2011) have an extended cast aluminium elbow. Please see the engine bay image for reference.

This piping kit is available in stealth black only.
