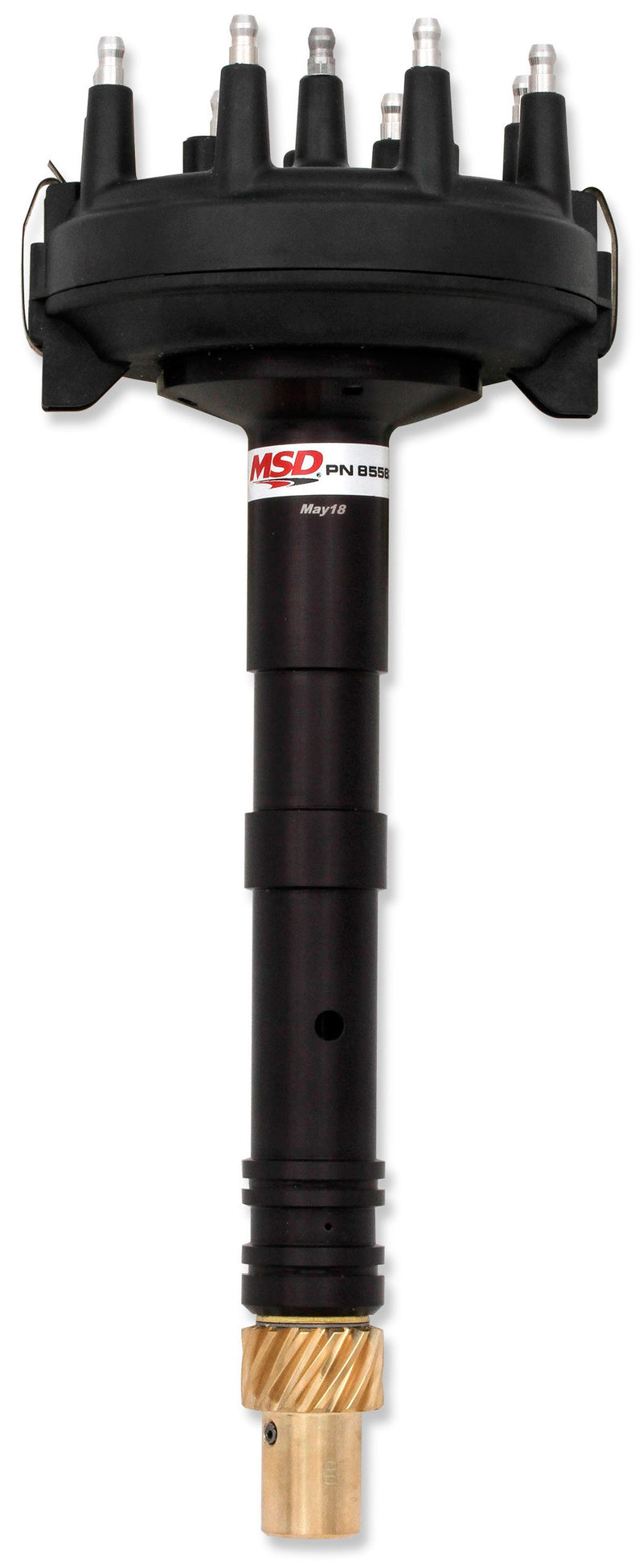

Low Profile Crank Trigger Distributor with Slip Collar
Fast Dispatch
Ships in 1–5 business days from our warehouse. Australia-wide delivery available.
Buy with Confidence
Secure checkout and support available if you need help before or after purchase.
Suit Tall Deck Chev V8
The unique design of these distributors fit tight intake systems while still transferring the high voltage of the MSD racing ignition to the spark plugs. The high voltage carrying capabilities are the result of several features which have been designed into these low-profile distributors. Thisincludes a large diameter cap with wide spaced terminals andan injection molded Rynite rotor with thick vanes to stirup the air inside the cap. Thehigh dielectric Rynite base also prevents arcing to the billet housing. The Tall BlockDistributor has a unique slip collar design. This allows thePN 8558 to fit in most tall block engines that have had the deck height modified.
Features:- Must be used with an MSD Crank Trigger and MSD Ignition Control
- Shaft is guided by a sealed ball bearing for long life and high RPM stability
- Polished steel shaft with a QPQ coating for friction reduction
- Supplied with bronze gear for race cam applications
- Large diameter distributor cap to prevent spark scatter associated with high cylinder pressure engines
- Adjustable slip collar mounting flange for engines with modified deck heights
- Shaft is guided by a sealed ball bearing and an extra long sintered bushing
- O-ring seals can be added to modified blocks to improve oil pressure control
- Designed to fit low in the block to clear firewall and intake combinations
