Cable (CANJST4)
by Link ECU
Original price
$53.90
-
Original price
$53.90
Original price
$53.90
$53.90
-
$53.90
Current price
$53.90
Availability
1-5 Days from Warehouse - Please Call To Confirm Instore Availability
Required to add CAN communications & power to recently released G4X Plugin ECU’s which have the new 4 Pin powered CAN connector (not the older 5pin CAN connector). Plugs directly into the socket on the ECU PCB, provides CAN and a protected 12V supply to allow easy connection of CAN accessories.
Suitable for powering a CAN Lambda, Dash, EGT amplifier or other similar low powered CAN devices which have a total continuous current draw of <3A.
Compatible PlugIns:233-4000 - PlugIn ECU G4X Honda S2000 AP1
228-4000 - PlugIn ECU G4X Subaru WRX V5-6
237-4000 - PlugIn ECU G4X Honda HC20X Type-R DC5/RSX
238-4000 - Plugin ECU G4X Subaru WRX11
239-4000 - Plugin ECU G4X MX5NB2X
240-4000 - Plugin ECU G4X MX5NB1X
Specs

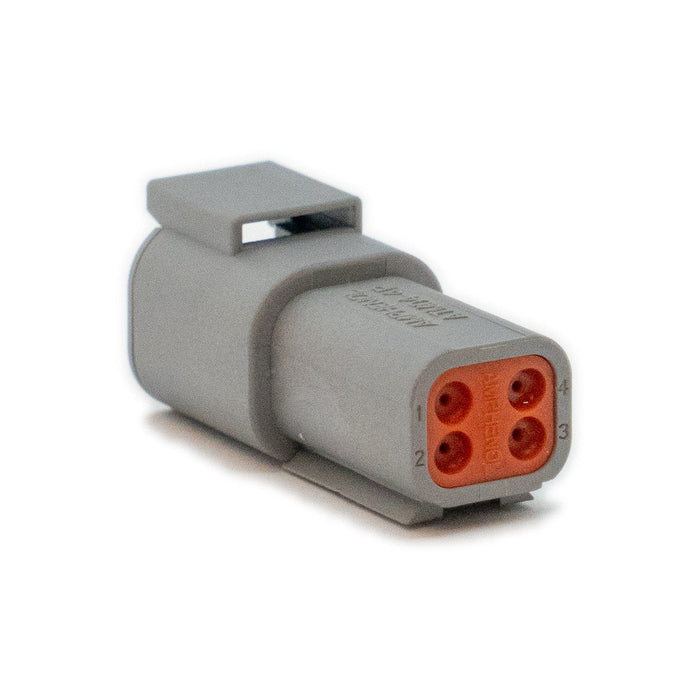

DTM4 Male to JST4. 12V and GND Terminated to JST4. Length 300mm
DTM4 Pin Out
Pin 4: CAN H
Pin 3: CAN L
Pin 2: Ground
Pin 1: 12V
