FG Falcon Hot Side Piping Kit (300kw - 500+kw)

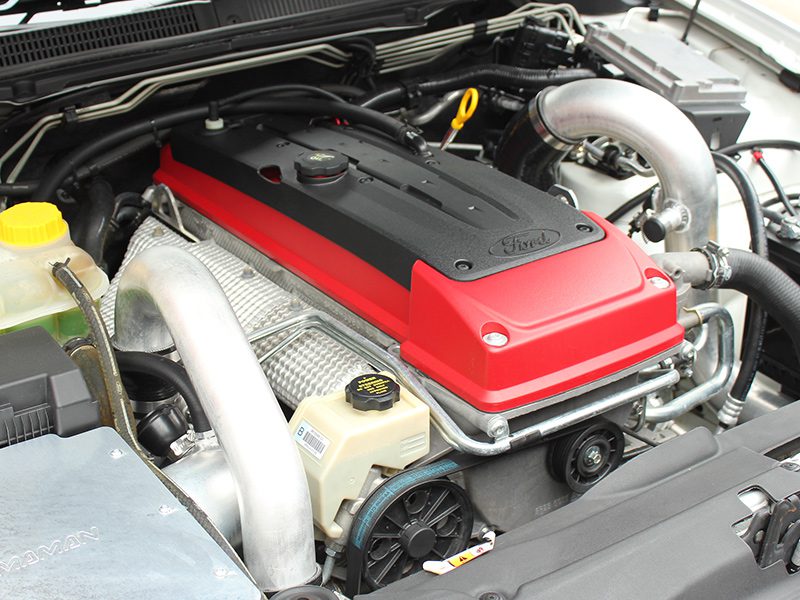

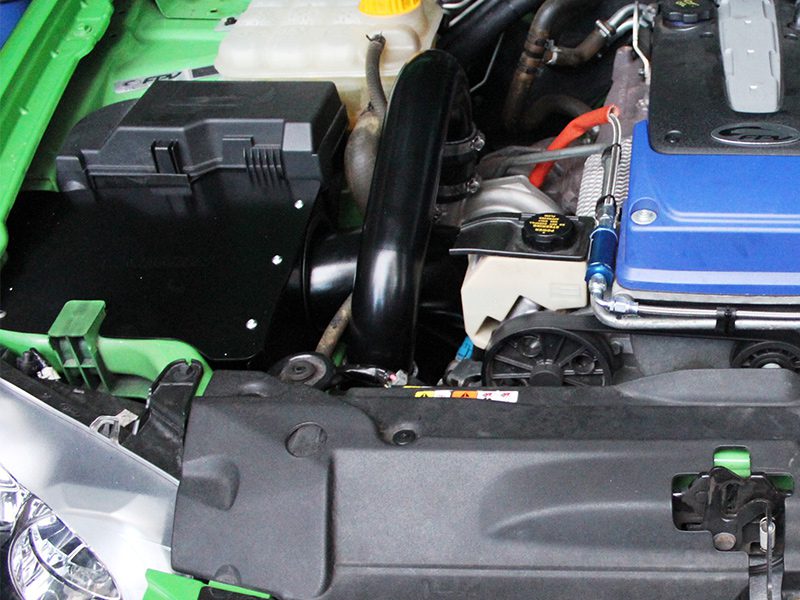

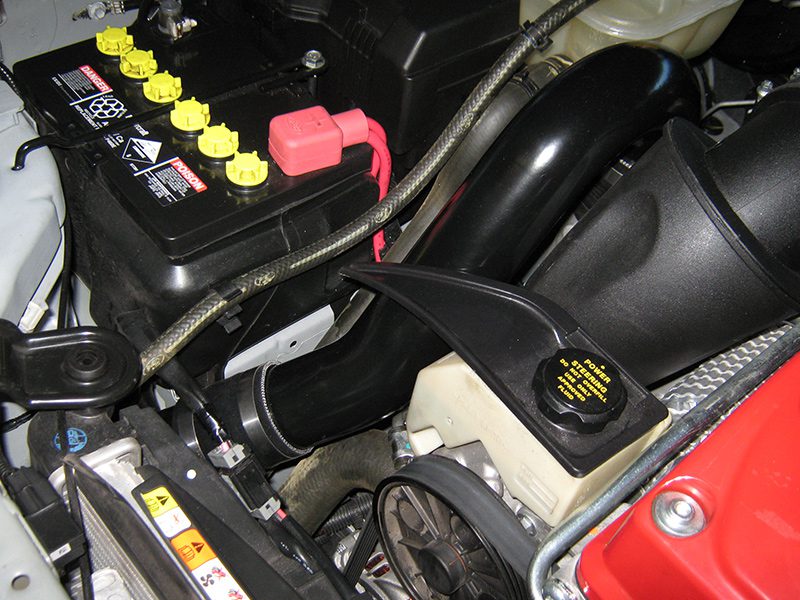

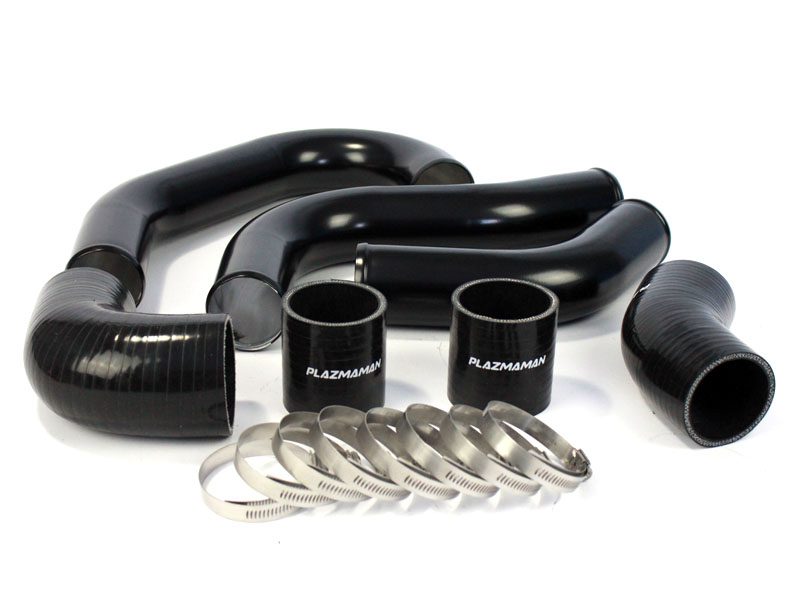

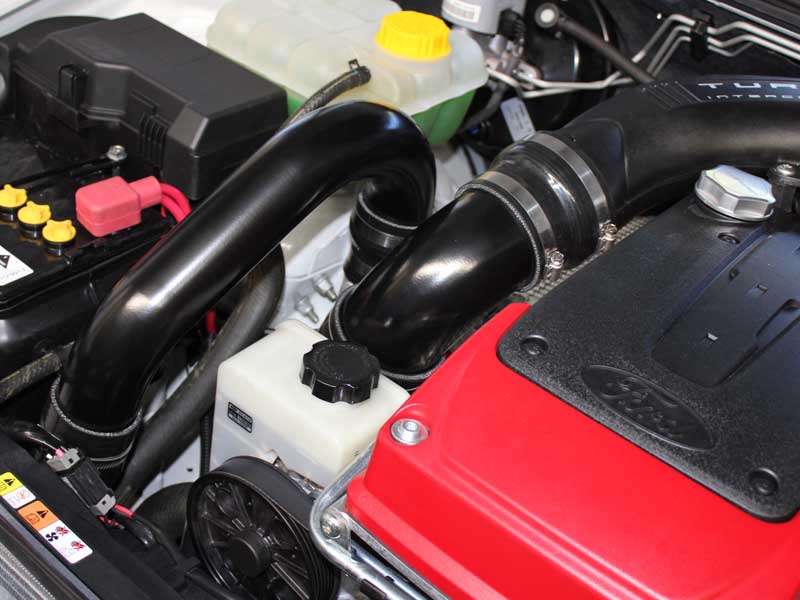

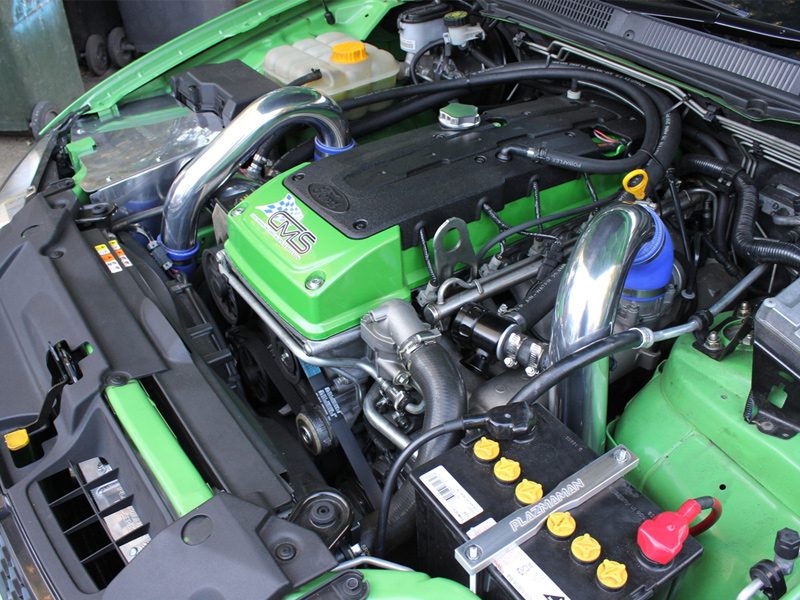

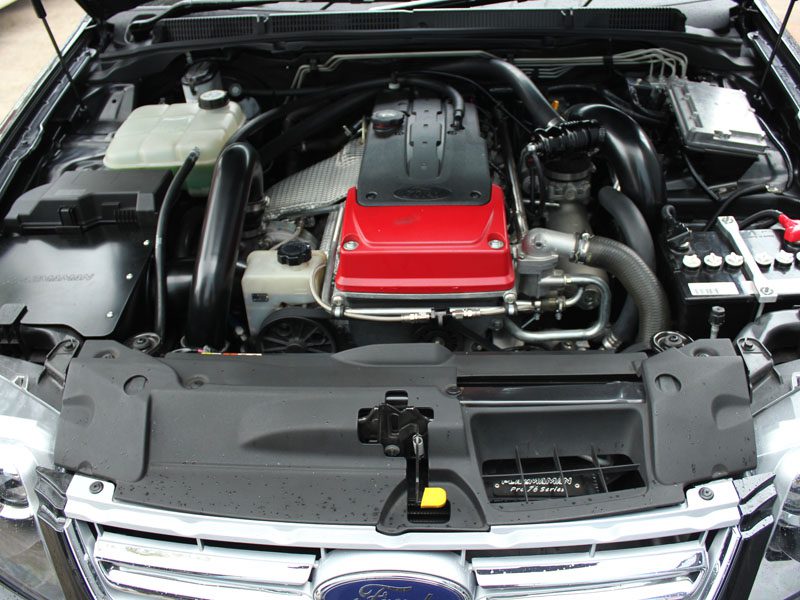

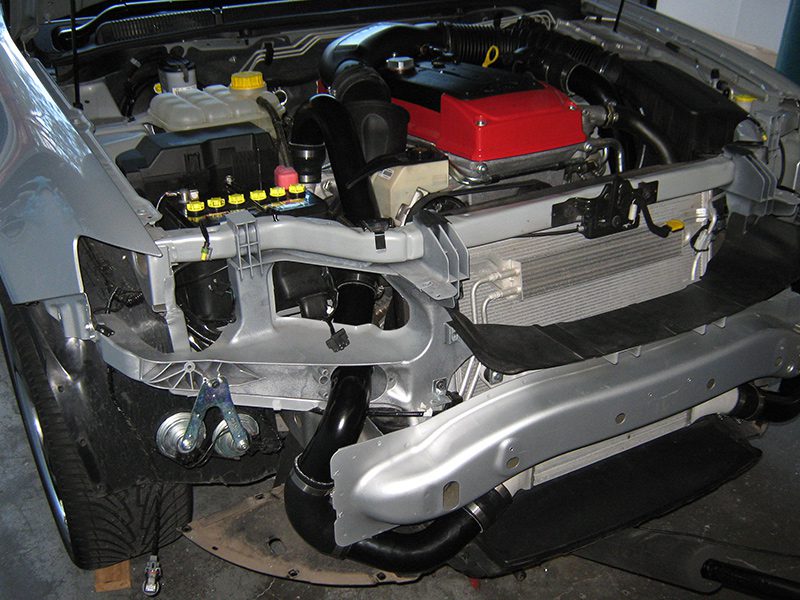

This competition hot side piping kit is to suit the Ford Falcon FG XR6 Turbo models. This piping kit replaces the factory rubber hose that runs from the intercooler on the driver’s side, to the compressor housing outlet on the turbocharger. Completely constructed from CNC aluminium mandrel bent piping, this kit prevents any flex or compression under high RPM and boost levels. Another advantage of running a larger than factory internally smooth hard pipe is that it encourages earlier turbo spool up and better throttle response throughout the rev range. This kit is suitable for use if a Plazmaman 4.0" Intake (or similar kit) is fitted (factory piping will not clear a 4.0" Inlet). There are a number of options available for the hot side piping kit: 63mm/2.5″ diameter (up to 380rwkw, suits the factory or Plazmaman Stgae 1 OEM replacement Intercooler). 70mm/2.75″ diameter (400rwkw, suits the Plazmaman Stage 2 800hp Pro Series Intercooler). 70-76mm (2.75-3") diameter (450rwkw+, suits the Plazmaman Stage 3 1000hp Pro Series Intercooler). There are also two silicone hose size options to choose from for turbocharger compressor outlet, for those who may have fitted an 0.70a/r upgrade compressor housing (factory is 2.0", 0.70a/r is 2.5"). The piping is available in two finishes; raw and stealth black, and the silicone hose is also available in two colours; blue or black.
