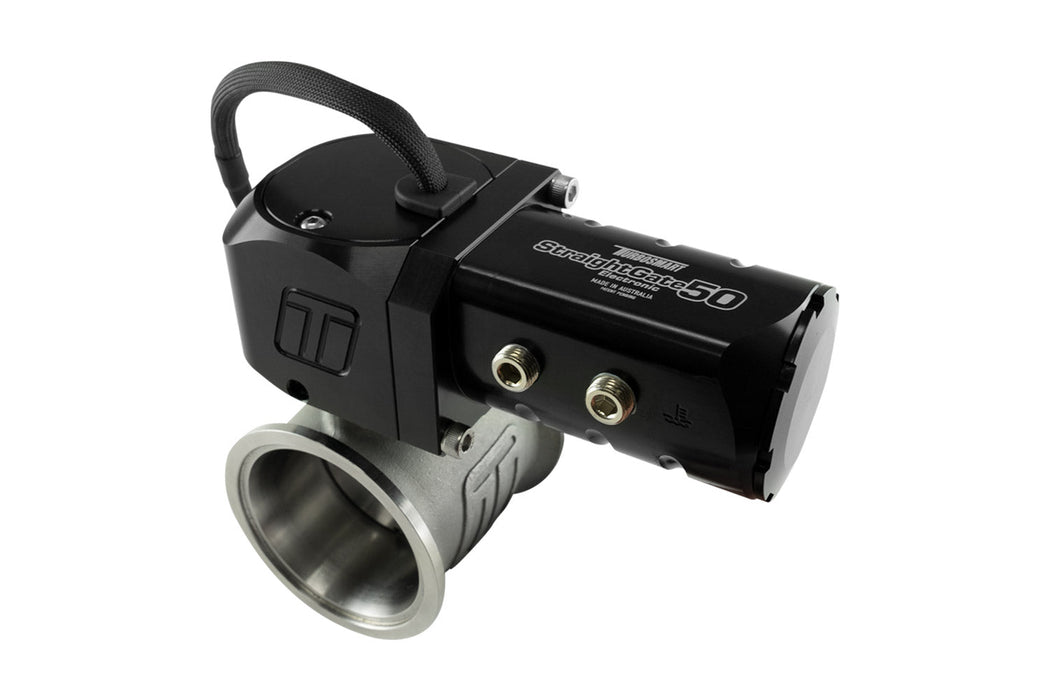

Turbosmart eSG50 Electronic StraightGate TS-0565-1002

Save 9% Save 9%
Original price $1,729.95
Original price $1,729.95 - Original price $1,729.95
Original price $1,729.95
Current price $1,572.68
$1,572.68 - $1,572.68
Current price $1,572.68

Availability

1-5 Days from Warehouse - Please Call To Confirm Instore Availability

The StraightGate50 from Turbosmart is the world's highest flowing external wastegate! The StraightGate50 is a zero-offset butterfly style wastegate which allows enormous flow and almost linear control with unparalleled boost control throughout the entire operating range.

Turbosmart's eSG50 Electronic StraightGate is a Patent Pending, Multiple Award Winning World First Electronically Actuated Butterfly Style External Wastegate. No reference hoses, no springs and no diaphragms means full electronic control via a servo motor and Turbosmart's zero-backdrive gearbox which results in lower current demands aswell as operation stability against huge drive pressures. The eSG50 includes onboard sensors covering actuator temperature aswell as valve position in both analog and digital. The Electronic actuation results in the widest possible tuning window from zero boost (if manifold priority allows for it) to all available boost.

The Turbosmart StraightGate50 has been designed from the ground up & validated in-house to create a new level of control and flow, never seen in any wastegate before it. The zero-offset butterfly valve is subjected to exhaust drive pressure equally on both halves of the valve which pivots centrally, resulting in a valve that is self-balanced against any drive pressure. This self-balancing means less work is required to actuate against even the highest of drive pressures and a wider tuning window is possible, no matter how the valve is actuated. The increased flow is achieved through the efficiency of a straight through valve versus a traditional poppet style valve where the exhaust gas must be turned 90 degrees by the valve.

Available in
Electronic eSG50 StraightGate50
Pneumatic (Boost-Based) pSG50 StriaghtGate50
Pneumatic (Vacuum-Based) pSG50v StraightGate50

Features
50mm (1.97in) Butterfly Style Zero-Offset Valve
383.9 CFM / 10.87m3 per minute flow
Stainless Steel (630) Butterfly and shaft
Stainless Steel (347) Main Body
Stainless Steel (Heat Treated 431) V-Band Clamps
360 Degree Mounting options on V-Band
Clock-able Actuator Position (3 x 120 Deg Options)
Full Electronic Actuation (Dual H-Bridge Input)
Onboard (0-5v) Analog Actuator Temperature Sensor
Onboard (0-5v) Analog Valve Position Sensor
Onboard (PWM) Digital Valve Position Sensor
7 Wire Unterminated Flying Lead Loom
Liquid Cooling for Actuator Stability
