Billet Distributor
Fast Dispatch
Ships in 1–5 business days from our warehouse. Australia-wide delivery available.
Buy with Confidence
Secure checkout and support available if you need help before or after purchase.

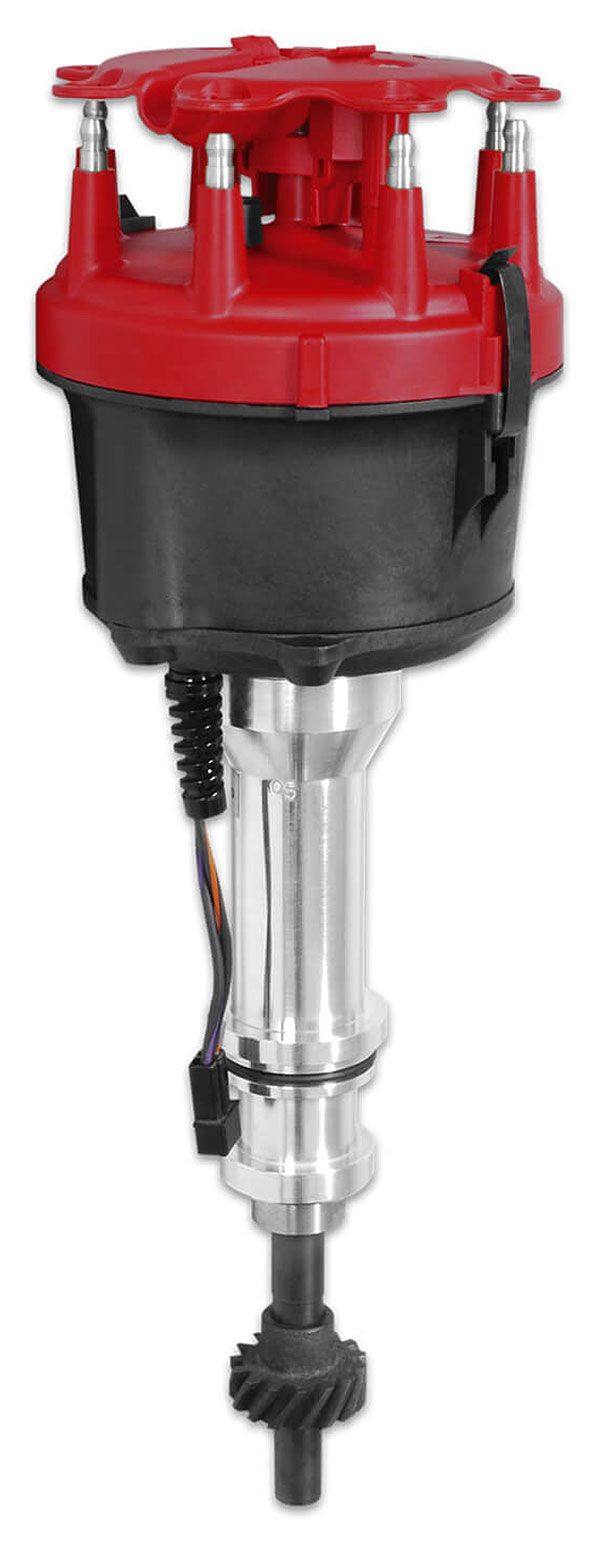

Ford 302-351C, 351M, 400, 429, 460, Magnetic Trigger, Mechanical Advance With Steel Gear
Our popular Ford big block billet distributor, now supplied with a steel gear installed for specific camshaft requirements.
Under the stainless steel terminals of the MSD cap and rotor is an easy-to-adjust mechanical advance assembly. The assemblyis fine blanked from chromyl steel, TIG-welded for strengthplus receives a QPQ coating. The precision weights glide onnylon bushings for smooth advancement and different springs and stop bushings are supplied so a variety of advance curves can be tuned.
The steel shaft that spins the advance and reluctor receives a friction reducing coating plus is guided by a sealed ball bearing and long sintered bushing. This combination provides stable timing signalsand spark delivery at any rpm.Triggering chores are handled by MSD's race proven, maintenance-free magnetic pick-up.
Note: Will not clear some factory-style Shaker Hood Scoops.
Features:
- CNC machined billet aluminium housing and Dupont Rynite base
- High quality Steel Gear installed
- Supplied with Cap-A-Dapt and rotor (accepts MSD socket style caps)
- Must be used with an MSD Ignition Control
- Mechanical advance assembly can be lockedout for crank trigger systems
- Nylon pads ensure smooth operation of theadvance weights
- Advance weightpins are staked and tig weldedto the plate
- Advance plate and weights are fine blanked from chrome moly steeland QPQ coated for friction reduction
- Polished steel shaft is QPQ coated and guided by a sealed ball bearing
- Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
- Easy-to-adjust mechanical advance with supplied springs and stop bushing
