Aeroflow Gm Ls Oil Port Adapter Allows AF64-2189BLK
Fast Dispatch
Ships in 1–5 business days from our warehouse. Australia-wide delivery available.
Buy with Confidence
Secure checkout and support available if you need help before or after purchase.

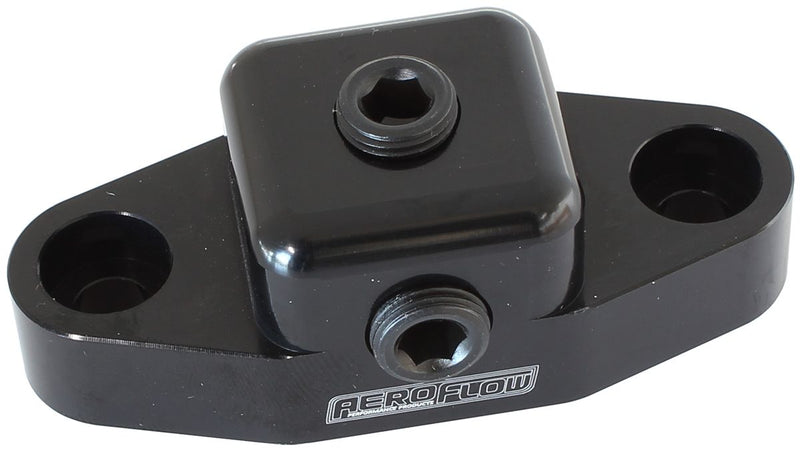

Suit GM LS Series Engines With x2 1/8" NPT Ports
The GM LS billet bypass plate or oil port adapter is a convenient way to add a 1/8" NPT port for auxiliary purposes on your GM LS engine. This plate is used to seal off the pressurized oil port in your oil pan above the oil filter, commonly used for oil cooler plumbing in factory applications. It replaces it with two 2 x 1/8" NPT ports both horizontally or vertically. These are great for oil pressure gauges/sensors or oil pressure feed line for supply to your turbocharger. This plate is compatible with all LS oil pans, except LS1 front-sump oil pans due to the architecture of the internal oil routing in the pan, and dry-sump oil pans (LS7, LS9).
The main body is made from billet 6061 aluminium, then anodised black for great looks and corrosion resistance. Included with this are two 1/8" NPT steel plugs and AF59-2189 metal gasket to suit.
