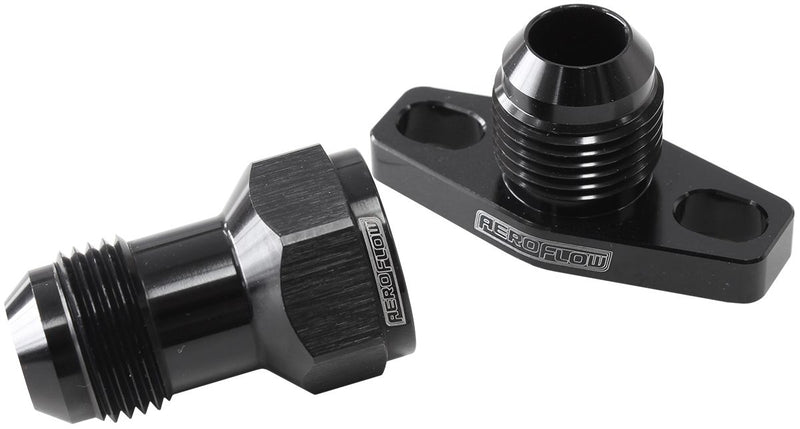

Aeroflow Turbo Drain Adapter 10An Mid AF463-11
Fast Dispatch
Ships in 1–5 business days from our warehouse. Australia-wide delivery available.
Buy with Confidence
Secure checkout and support available if you need help before or after purchase.
With -10AN Fitting, 38-44mm Hole Centres. Black Finish.
Turbo Oil Drain Adapter With O-Ring Seal.
-10 AN male with 1.5" (38mm) tube with 38-44mm hole centres to suit turbos with 38mm bolt centres on core.
This selection of turbo drains options available from Aeroflow Performance will allow a large range custom plumbing application. For sufficient drainage of oil for both bearing styles of turbochargers a -10AN or 5/8” hose is ideal. The oil outlet should follow the direction of gravity +/-45° when installed in the vehicle on level ground. It is recommended to avoid kinks or beyond 90-degree bends in the oil drain line and draining into the sump below. With heat surrounding the manifold and turbocharger a heat shield or sleeve is a great idea to prolong the life of the hose.
