450x400x76 Pro Series Intercooler
Fast Dispatch
Ships in 1–5 business days from our warehouse. Australia-wide delivery available.
Buy with Confidence
Secure checkout and support available if you need help before or after purchase.

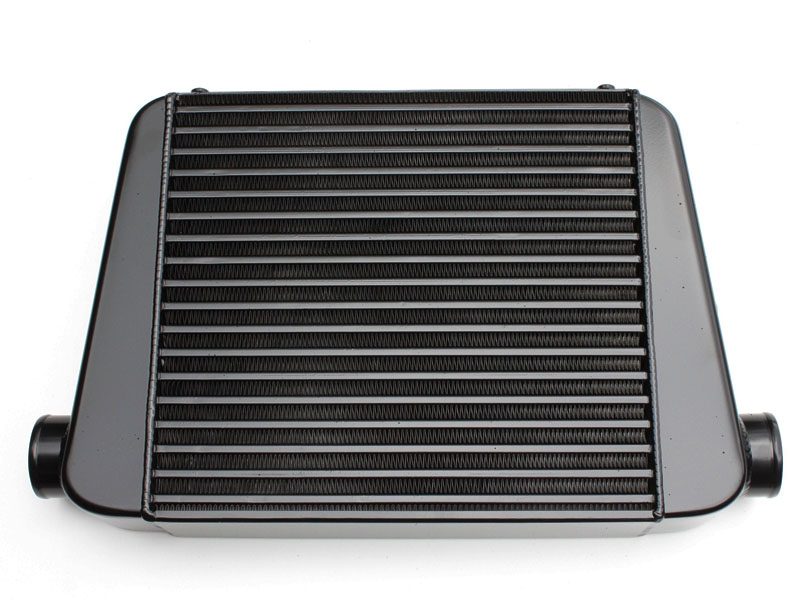

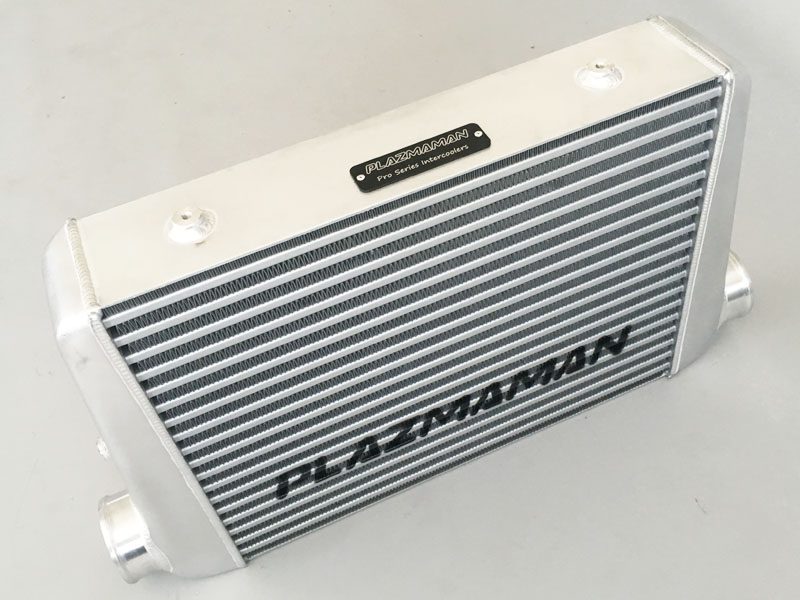

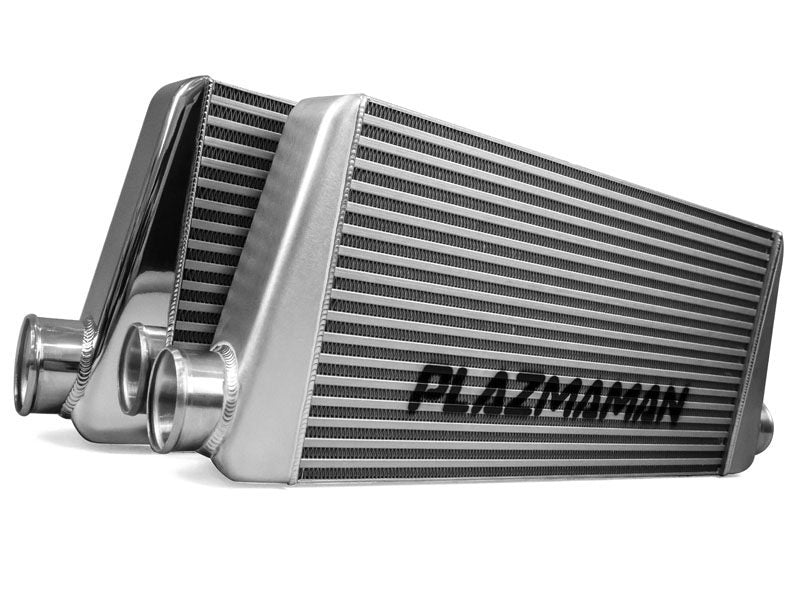

Plazmaman Universal Pro Series Intercooler
Specifications;
450 x 400 x 76mm Core Size
800-1000hp Rated

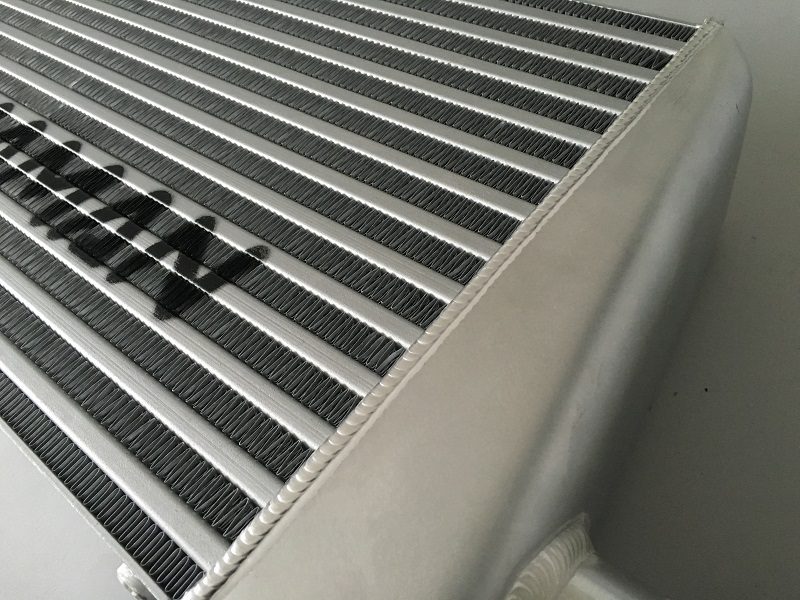

Lightweight tube & fin race spec core design
Fabricated bottom inlet/outlet end tanks, with 3.0″ (76mm) push-on hose style connection
Available in Raw, Black or Polished finish
Product Options;
This intercooler can be ordered with hose bottom inlet/outlet end tanks.**
This intercooler can be ordered with Plazmaclamp outlet assemblies.
We can build a completely custom end tank style – please Contact Us to discuss further options.
**Although it is not recommended, we can manufacture these intercoolers with the smaller diameter 2.5″ (63mm) inlet and outlet sizes to allow for some compact installations. However, to achieve the maximum flow and power benefit from this intercooler core, we suggest 3.0″ (76mm) outlets, in either push-on hose style, or Plazmaclamps**
Please be advised that the flow rating figures for this intercooler is based on CFM flow figures and experience. These figures might not be correct if a larger capacity engine (6 Litre +) and/or larger body 90mm + front blade size turbocharger is used. Please contact us if you fall into this category for intercooler requirement.
