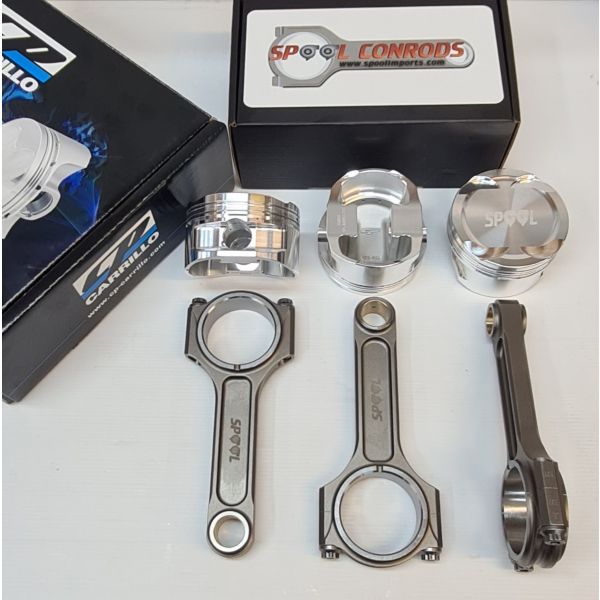

Spool XR6 Turbo H Beam Conrods and CP Bullet Forged Pistons
These CP Bullet Pistons are rated at up to 1000hp
Available in:
- Bore: *STD, +10" or +20"
- Comp Ratio: 9.0:1
These Spool CP Bullet Pistons feature:
- 2618 Forged Alloy
- Offset gudgeon Pin
- 4 x Valve Pockets
- 0.200” 51 pins STD
- Upgraded 0.200” and 0.250” 9310 pins are available when adding to cart.
- Includes piston rings, pins and pin locks.
Spool Connecting Rods Feature:
- ARP 2000 fasteners (L19 fasteners are available as an upgrade)
- High tensile 4340 forged steel
- 2 Piece forging
- Hardness of HRC36-42
- Dowelled caps for precision alignment
- X-RAY & Sonic tested
- Quenching and heat treated
- Shot peened
- 100% Magnafluxed
- Weight Matched Sets +/- 1 gram
- Vacuum degassed to remove impurities
Note: We recommend Joe Gibbs Break in Oil for all new engines.
Please Note:
*STD bore size pistons are not recommended in a used bore for any performance engine unless the bores have done minimal work with minimal wear and the correct piston to bore clearance can be adhered to.
All piston manufacturers have a specific piston to bore clearance that they recommend. If STD bore pistons are requested and there is a piston to bore clearance issue we will not exchange or refund, due to the reasons given above.
