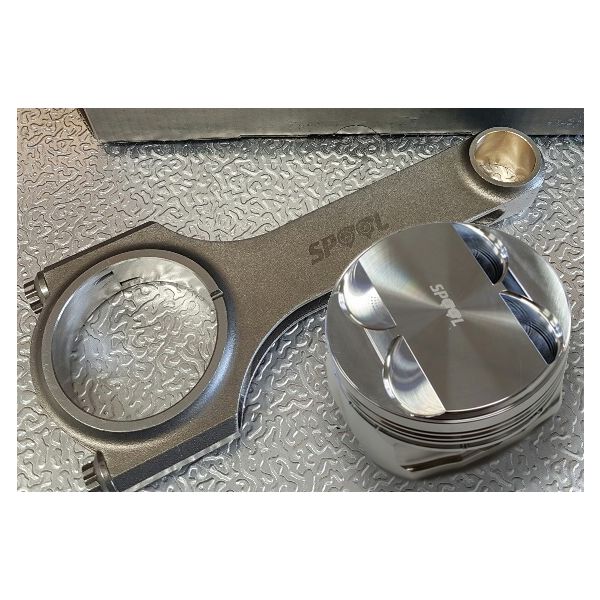

Spool Ford Coyote 5.0L H Beam Conrods and CP Pistons
Original price
$2,940.00
-
Original price
$4,098.00
Original price
$2,940.00
$2,940.00
-
$4,098.00
Current price
$2,940.00
Fast Dispatch
Ships in 1–5 business days from our warehouse. Australia-wide delivery available.
Buy with Confidence
Secure checkout and support available if you need help before or after purchase.
Spool Ford Coyote 5.0L V8 H Beam Conrods and CP Pistons
Piston Specifications:
- Bore: 3.631"
- Compression Height: 1.166"
- Dish / Dome: -2.5cc
- Type: Flat Top
- Part #: BF9870-STD
Spool Connecting Rods Feature:
- ARP 2000 fasteners (L19 fasteners are available as an upgrade)
- High tensile 4340 forged steel
- 2 Piece forging
- Hardness of HRC36-42
- Dowelled caps for precision alignment
- X-RAY & Sonic tested
- Quenching and heat treated
- Shot peened
- 100% Magnafluxed
- Weight Matched Sets +/- 1 gram
- Vacuum degassed to remove impurities
CP Pistons standard features include:
- 5310 gudgeon pins (9310 thicker wall thickness pins are available as an upgrade)
- Deep valve reliefs accommodate high lift camshafts
- Larger valve reliefs for +1mm valve sizes
- Custom skirt cam and barrel design
- Accumulator grooves
- High strength aluminium forgings
- High performance rings
- Fully CNC machined and balanced to +/- 1 gram
- Wrist pins included
- Double pin oilers force fed from oil ring groove
- Pick lock grooves for easy lock removal
- Pin fitting included
