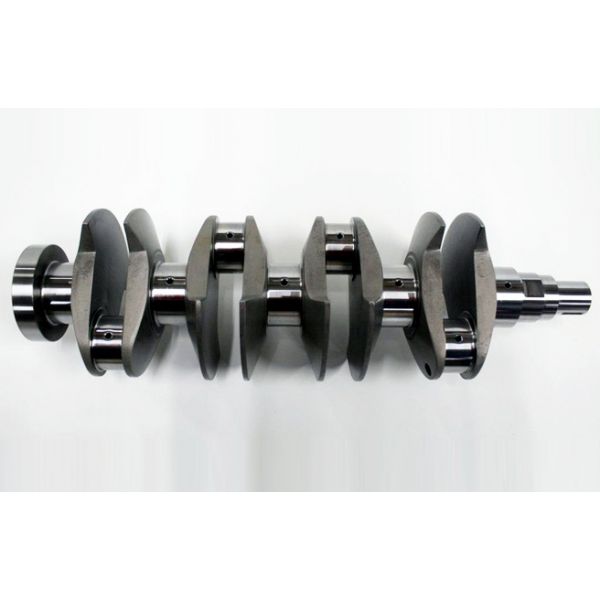

Spool Mitsubishi 4G63 Stroker Crankshaft - 100mm
Fast Dispatch
Ships in 1–5 business days from our warehouse. Australia-wide delivery available.
Buy with Confidence
Secure checkout and support available if you need help before or after purchase.
Mitsubishi 4G63 100mm 4340 Stroker Crankshaft
With the increased cubic capacity from the 100mm stroker crank, increases of up to 50% in torque and low to mid range power are achievable. Boost will come on earlier in the rev range and peak power will increase.
Full Forged 4340 - Nitrided, Balanced and Full Counter Weight Crankshaft
The 4G63 engine in its factory form has a 85mm bore and 88mm stroke, giving a displacement of 1997cc.
Using the 100 mm stroker crank, std length conrods and custom pistons, the displacement is increased as follows:
- 85.5mm bore and the 100mm stroker crank = 2297cc / 300cc increase
- 86 mm bore and the 100 mm stroker crank = 2324cc / 327cc increase
Note: If conrod to block interference occurs, slight clearancing maybe required.
- Crank Weighs 16kg
- 4340 Grade Billet Steel
- Fully Counter Weighted
- Nitrided Finish
- Fully Balanced
- Stroke 100mm
