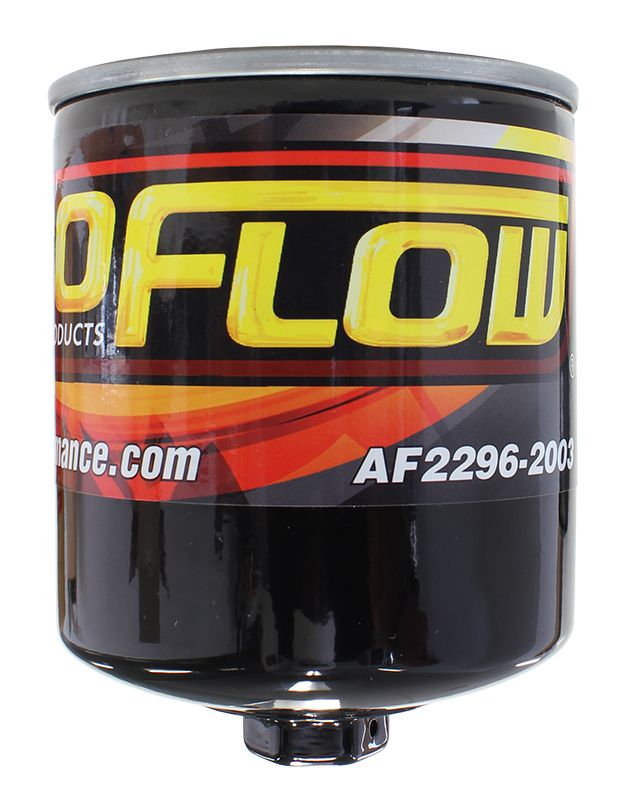

Aeroflow Oil Filter Holden V8 Long AF2296-2003
Fast Dispatch
Ships in 1–5 business days from our warehouse. Australia-wide delivery available.
Buy with Confidence
Secure checkout and support available if you need help before or after purchase.
Holden, Jeep & Toyota (Z30) 13/16-16
Aeroflow Oil Filters combine durability and easy removal in the new high performance filters. Originally designed for racers, these oil filters use an improved coil spring design and feature an extra-thick backing plate which provides added protection against pressure surges in racing applications. Featuring a Buna-N rubber gasket, these filters are compatible with almost all racing fuels and lubricants. In terms of filtration, these filters have a premium pleated synthetic blend media which provides increased filtration at high flow rates with minimal pressure drop.
Featuring an unique louvered centre tube, this allows more flow area and eliminates media wear during pleat movement which increases flow. Having an easy hex release nut, use a 24mm or 15/16"" spanner/socket which will allow for simple and easy removal. Replace your tired old oil filter with an Aeroflow Oil Filter today! Engineered for performance d durability, this is the new oil filter of choice for any application, street or track!
AF2296-2003 Vehicle Application (Z30):
HOLDEN
Commodore, VB-VK Sedan/Wagon 173 2.8L, 202 3.3L L6 - 253 4.2L, 304 4.9L, 308 5.0L V8 11/78-88
Monaro GTS, HK,HT,HG,HQ-WB 173 2.8L, 202 3.3L L6 - 253 4.2L, 308 5.0L V8
Torana, LC-LJ Sedan & Coupe 173 2.8L, 202 3.3L L6 11/69-74
Torana, LH,LX,UC Sedan & Hatch 173 2.8L, 202 3.3L L6 - 253 4.2L, 308 5.0L V8 03/74-79
Sedan/Wagon/Ute All Models Red/Blue/Black Motor L6 & V8 63-88
JEEP
CJ5, SWB/LWB 3.8L L6 (6-232/6-258) 06/73-77
CJ7 Renegade, 4.2L L6 09/78-81
CJ7 Hardtop, 2.5L L4 (B) 06/81-83
CJ8 Renegade, 2.5L L4 (B) 06/81-83
CJ8 Renegade, 4.2L L6 (B8) 06/81-85
CJ8 Sportsman, 4.2L L6 (B) 84-85
TOYOTA
Corona, XT130 1.9L L4 (Starfire) 10/79-83
AF2296-2003 Filter Specification
Anti Drain Back lve: Yes
Bypass Valve: No
Filter Material: High Flow Premium Media
Gasket Material: Nitrile Rubber
Height: 4.688 in (119 mm)
Outside Diameter: 3.781 in (96 mm)
PSI Relief Valve: None
Removal Nut Size: 15/16""
Thread Specification: 13/16""-16
