Haltech uC-10 Digital Dash
Haltech uC-10 Digital Dash
Haltech uC-10 Digital Dash
Haltech uC-10 Digital Dash
Haltech uC-10 Digital Dash

Haltech uC-10 Digital Dash

by Haltech
$2,950.00 - $2,950.00
$2,950.00
$2,950.00 - $2,950.00
$2,950.00

Fast Dispatch

Ships in 1–5 business days from our warehouse. Australia-wide delivery available.

Buy with Confidence

Secure checkout and support available if you need help before or after purchase.

Size: 10in

OBDII functionality requires adapter
cable HT-135003 (sold separately).

Suits: All current Haltech ECUs via CAN. Also Plug'n'Play compatible with the following generic aftermarket ECU protocols: Hondata, Link G4, MaxxECU, Microtech, MoTeC M1 series, MoTeC hundred series- (M400,600,800 gold box ECUs), Syvecs.

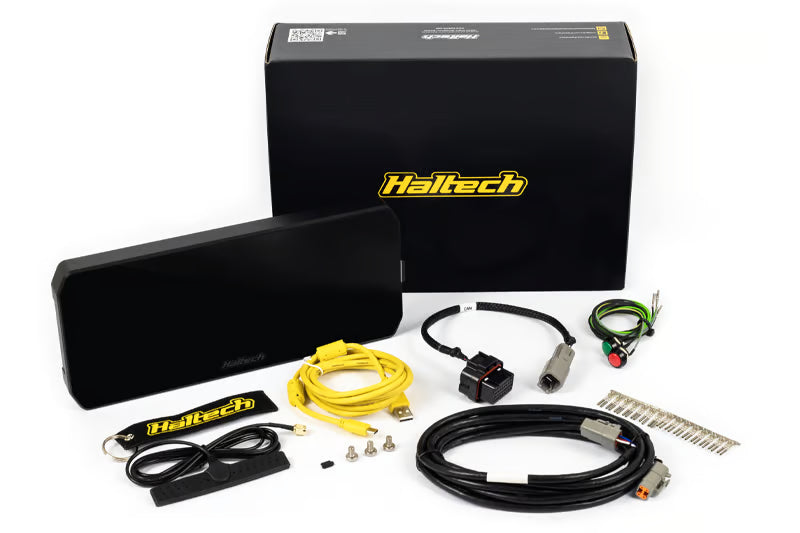

Includes: 1 x Haltech uC-10 Digital Dash, 1 x 34P connector - same as HT-131001, 1 x Haltech DTM4 to DTM4 CAN cable 3.0m (118in), 1 x USB-C cable, 3 x M5 x 8mm mounting screws, 2 x Momentary switches, pre-terminated 800mm 22AWG Cable, 1 x Glass Mount Wi-Fi antenna (Wi-Fi functionality will be made available with future firmware update), 1 x Haltech fabric keytag, Quick Start Guide, Haltech stickers.

DASH OVERVIEW

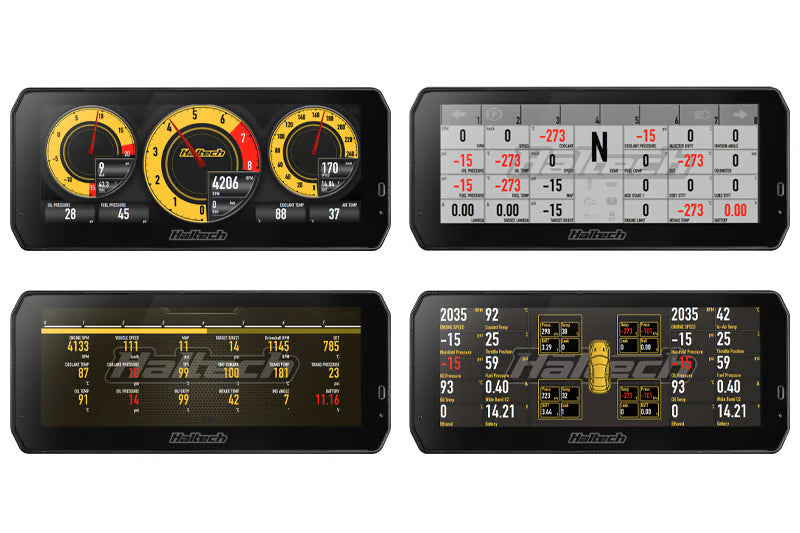

Take full control of your vehicle's data with the Haltech uC-10 Display Dash. Featuring a crisp, clear, and full-colour screen, the uC-10 display is now fully customisable using Haltech's powerful and intuitive NSP software. Allowing you to design your own screen layouts, arrange gauges, and display the data you want to see, exactly how you want to see it.
Versatility is central to the uC-10. It offers wide compatibility with Haltech CAN, OBD2, and a host of popular aftermarket ECUs, or it can be wired in as a complete stand-alone unit. This ensures seamless integration into a wide range of vehicles and setups. The uC-10 also offers extensive I/O capacity, making it an ideal central data hub or an I/O expander in an existing Haltech environment.
Full Screen Customisation:
Design and configure your own display layouts with Haltech's NSP software.
Broad Compatibility:
Haltech CAN and OBD2 ready.
Plug'n'Play compatible with the following aftermarket ECU brands:
  • Hondata
  • Link G4
  • MaxxECU
  • Microtech
  • MoTeC M1 Series
  • MoTeC Hundred Series (M400, M600, M800 gold box ECUs)
  • Syvecs
Display:
Full-colour, optically-bonded TFT screen with a 1280 x 480 resolution and 600+ lumens.
Viewing Angle:
70-degree minimum viewing angle (vertical and horizontal).
Protection:
IP64 rated (Dust-tight and protected against water splashes).
Data Logging:
512MB of on-board looped data logging.
Odometer:
6-digit odometer.
Inputs & Outputs:
  • 10 x user-configurable Analogue Voltage Inputs (AVIPs)
  • 4 x user-configurable Digital Pulsed Outputs (DPOs)
  • 4 x user-configurable Switched Pulsed Inputs (SPIs)
  • 1 x dedicated Tacho Input
  • 1 x dedicated alternator excite
Sensors:
2 x Ambient light sensors.
