Aeroflow Gm Ls Carby Intake Manifold AF6250-5001
Fast Dispatch
Ships in 1–5 business days from our warehouse. Australia-wide delivery available.
Buy with Confidence
Secure checkout and support available if you need help before or after purchase.
4 Barrell 4150 Square Bore Carburettor Pad

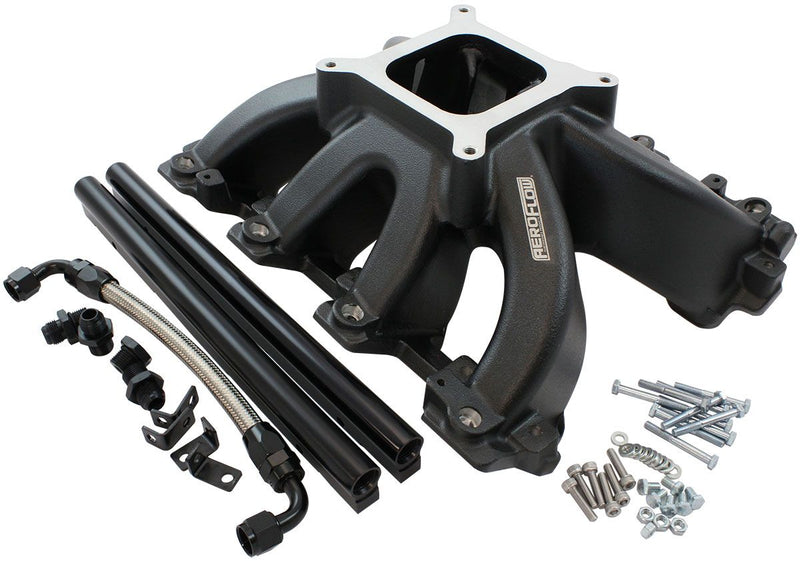

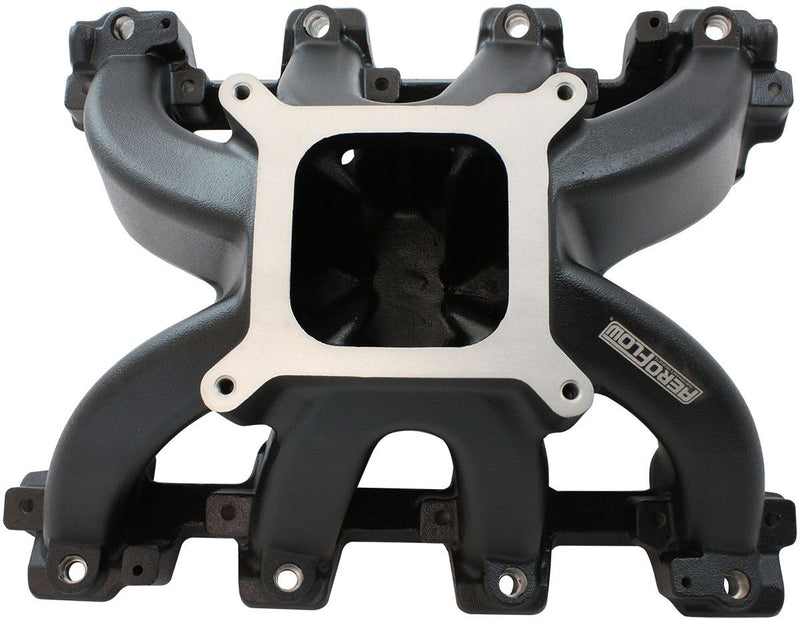

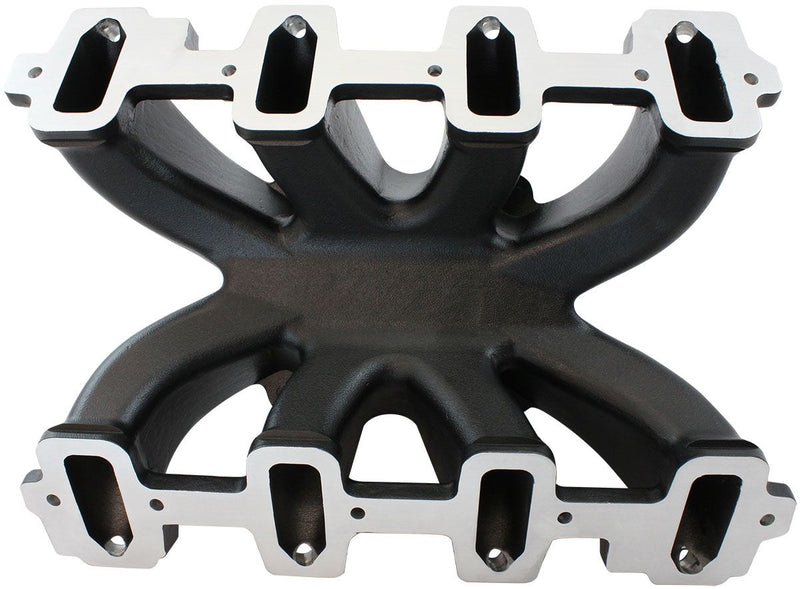

Convert your GM LS engine to allow a 4150 style throttle body to sit on top of your engine for retro-fit applications with this Aeroflow Performance Hi Rise Race cast intake manifold. This single-plane intake manifold is designed to keep your air and fuel distribution going into the engine at a steady and even flow for maximum performance and efficiency. The carburettor-mounting pad is designed to accept aftermarket 4150 square-bore throttle bodies or adapter plates for turbocharged applications. Specifically designed to suit GM LS Gen III and IV engines equipped with OE or aftermarket LS1/LS2 cathedral port cylinder heads.
• Fits GM LS1/LS2 Cathedral Port Engines.
• EFI Applications.
• This is designed for GM LS Engines with EFI only. Use AF6040-5005 for NON-EFI applications.
• This intake manifold does not work with factory OEM fuel rails and requires the use of Aeroflow Fuel Rail Kit included (AF6999-5000).
• Requires the use of 14mm short (33.60mm) fuel injectors (Sold Separately).
• Fits GM LS1/LS2 Engines.
• Single Plane Configuration.
• High Rise Intake Manifold.
• RPM operating range - 2500 to 7000.
• Black Finish.
•- Intake manifold Flat style gasket (must use Fel Pro 1312-2 or 1312-3).
