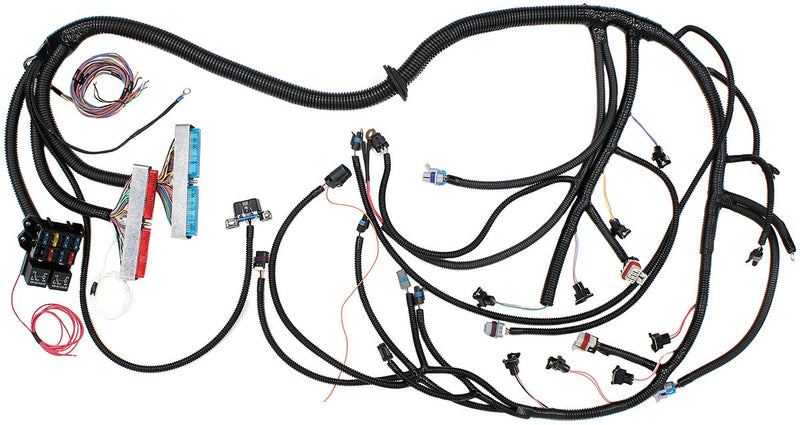

Aeroflow Ls1 Standalone Wiring Har AF49-1512
Fast Dispatch
Ships in 1–5 business days from our warehouse. Australia-wide delivery available.
Buy with Confidence
Secure checkout and support available if you need help before or after purchase.
Standalone Plug and Play Complete Engine Harness
Aeroflow Performance wiring harness is designed to be a complete plug and play harness for EFI GM LS1/LS6 series engines. It is a complete standalone replacement wiring harness that suits GM LS1 engines (1997 to 2002) with drive by cable throttle body and T56 manual transmissions or non-electronic controlled automatic transmissions. Perfect for retrofitting into older muscle cars and street rods or newer non-emissions-controlled vehicles with a four-wire hook-up (switched power, constant power and ground connections). The harness features a sliding grommet seal for a leak proof installation and 1.2 to 1.5 meters (3.9 to 4.9 feet) of length from the rear of the cylinder head to the PCM mounting position under the vehicle dashboard. The harness is constructed with GM Delphi connectors and terminals and high temperature wires. It includes all wiring that is required by the Powertrain Control Module (PCM) to run and control the fuel injection system.
Connections included for:- Fuse/Relay Box
- Fuel Pump Control (Relay included)
- Fan controls (Relays and fuse Sold Separately)
- Check Engine Light, Speedo output, Tachometer, OBD2 Port
- Idle Air Control and Throttle Position Sensor
- 3-Pin Mass Air Flow Sensor
- Manifold Absolute Pressure Sensor
- Engine Coolant Temp Sensor
- 4-Pin Alternator Control
- 2 x Oxygen Sensors
- Knock Sensor
- Crankshaft Position
- Camshaft Position
- Fuel Injectors with EV1 Plugs
- Coil Packs
- Vehicle Speed Sensor
- Reverse Lockout Sensor
